'ATC' gets more from your tank and increases significantly your annual profit!

ATC, Automatic Temperature Compensation,is the key to your storage problem.

DON'T ALLOW YOUR PROFITS TO DECREASE WITH THE TEMPERATURE !

The problem :

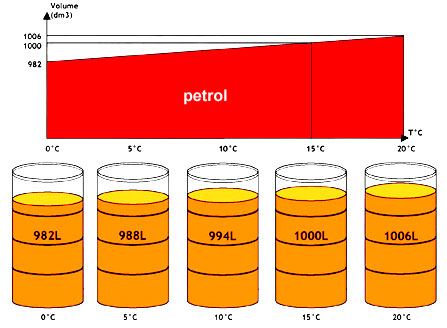

A liquid is subject to expansion or cutback as a result of temperature changes. Given that diesel fuel and petrol are liquids, their volume also changes in function of the temperature. All European studies agree. There is indeed a very strong connection between the annual average environmental temperature and the annual average temperature of the stored product. For Belgium the average environmental temperature lies around 11°C.

Today your product is delivered at 15°C compensated, but the temperature of the product itself will adapt quickly to the conditions in the tank … whereby the volume will decrease.





Fuel dispensers were not originally foreseen to absorb these 'volume changes'. Your measure room measures with metrological accuracy the ‘volume’, but does not take into account the 'volume changes' caused by the temperature.
So each day you loose volume, that results in a drastically decrease of your profit margin!



The Solution : ATC (Automatic Temperature Compensation)

ATC is the technology whereby the measured volume is automatically corrected in function of the measured temperature. In conformity with European Metrological directives the volume is transmitted in litres to the standard reference temperature of 15°C.

Therefore, your dispenser takes into account the volume changes as a result of the temperature changes resulting in the fact that you can sell the total volume you bought.
With ATC the 'lost litres' belong to the past and you can have an indisputable control on your stock.

In the early '80, the producer Kraus Global has delivered pioneering work in the ATC technology for dispensers and has today applied their technology in more than 30.000 dispensers in Canada as well as in the US. Kraus Global has worldwide the biggest number of applications written on their name. A strong argument for security and reliability.

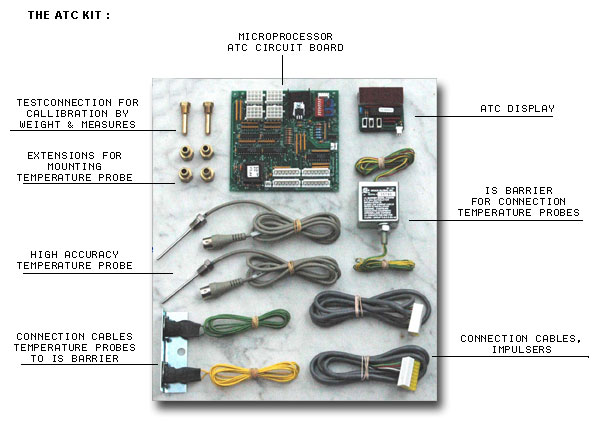

The 'ATC kit' can be inplemented in new and existing dispensers with conservation of all existing components. The 'ATC kit' is an extra item that is added to your dispenser and has therefore received a European Metrological approval following OIML R117. And with the ultra fast "Return On Investment", which amounts usually to less than 1 year, this could be your best investment ever.



General characteristics:

  • European Metrological OIML R117 approval.
  • Multifunctional retrofit kit: insertable for single and double pumps and also Multi Product Dispensers (MPD’s).
  • ATEX approved safety barrier in combination with highly accuracy temperature probe.
  • Available for all hydrocarbons.
  • Product Temperature Range from -20°C tot +50°C.
  • Show all necessary metrological data in conformity with OIML R117 onto the separate ATC display.
